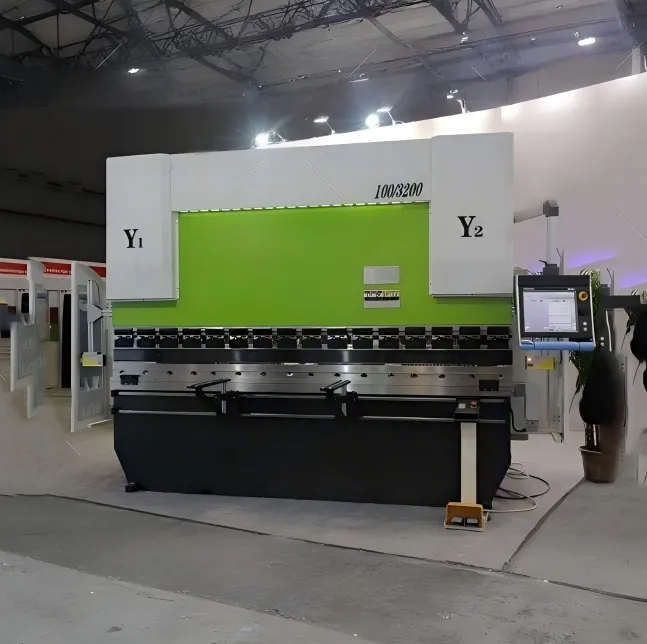

CNC Torsion-axis Synchronous Press Brake

Product Overview:

The robust, rigid torsion bar design ensures synchronized slider movement; built-in mechanical stops ensure precise slider positioning; the E200P CNC system offers stable performance, ease of use, and excellent value for money; the E200P controls both the X and Y axes, enabling precise and efficient operation; servo motor control enables fast and accurate positioning to meet the needs of various users.

Order Hotline：+86-185 6192 1984

Product Description:

The machine body is constructed of welded steel plates; structural components undergo vibration aging treatment to eliminate internal stresses and shot blasting for rust removal; a dual-cylinder configuration is employed. Electro-hydraulic proportional servo valves provide synchronization (Y1, Y2), The electro-hydraulic proportional servo system is a position control system that provides the machine tool with strong resistance to off-center loading. It dynamically detects the position error of the ram via a grating, and the electro-hydraulic proportional valves independently control and adjust the movement speed of the two cylinders to correct the ram’s synchronization error. Even when one cylinder is under full load and the other is under zero load (i.e., when the ram is under full off-center loading), the ram remains parallel to the worktable at all times; The rear stopper is controlled by the X-axis, which controls the forward and backward movement and positioning of the stopper beam; the hydraulic system employs an original German electro-hydraulic proportional system with a simple and centralized piping layout; it uses imported seals from Japan’s NOC Corporation, ensuring reliable sealing; the worktable utilizes a V-axis-controlled hydraulic deflection compensation system;

Technical Specifications:

规格型号	公称压力（kN）	工作台长度(mm)	立柱间距离(mm)	喉口深度(mm)	滑块行程(mm)	主电机功率(kw)
WC67Y40/2000	400	2000	1800	250	100	4
WC67Y40/2200	400	2200	1800	250	100	4
WC67Y40/2500	400	2500	2000	250	100	4
WC67Y50/2500	500	2500	1900	250	100	4
WC67Y50/3200	500	3200	2600	250	100	4
WC67Y63/2500	630	2500	2020	250	120	5.5
WC67Y63/3200	630	3200	2600	250	120	5.5
WC67Y80/3200	800	3200	2600	250	120	5.5
WC67Y80/4000	800	4000	3200	250	120	5.5
WC67Y100/2500	1000	2500	2000	320	120	7.5
WC67Y100/3200	1000	3200	2600	320	120	7.5
WC67Y100/4000	1000	4000	3200	320	120	7.5
WC67Y100/5000	1000	5000	4000	320	120	7.5
WC67Y125/2500	1250	2500	2000	320	120	7.5
WC67Y125/3200	1250	3200	2600	320	120	7.5
WC67Y125/4000	1250	4000	3200	320	120	7.5
WC67Y125/5000	1250	5000	4000	320	120	7.5
WC67Y160/3200	1600	3200	2600	400	200	11
WC67Y160/4000	1600	4000	3200	400	200	11
WC67Y160/5000	1600	5000	4000	400	200	15
WC67Y160/6000	1600	6000	4800	400	200	15
WC67Y200/3200	2000	3200	2600	400	200	15
WC67Y200/4000	2000	4000	3200	400	200	15
WC67Y200/5000	2000	5000	4000	400	200	15
WC67Y200/6000	2000	6000	4800	400	200	15
WC67Y250/3200	2500	3200	2600	400	250	22
WC67Y250/4000	2500	4000	3200	400	250	22
WC67Y250/5000	2500	5000	4000	400	250	22
WC67Y300/4000	3000	4000	3200	400	250	22
WC67Y300/5000	3000	5000	4000	400	250	22
WC67Y300/6000	3000	6000	4800	400	250	22
WC67Y400/5000	4000	5000	4000	400	250	30
WC67Y400/6000	4000	6000	4800	400	250	37
WC67Y500/6000	5000	6000	4800	400	300	37
WC67Y500/12000	5000	12000	多立柱	400	300	37
WC67Y600/7000	6000	7000	5600	400	300	45
WC67Y700/7000	7000	7000	5600	400	300	45
WC67Y800/6000	8000	8000	5600	500	400	55
WC67Y1000/6000	10000	6000	5600	600	500	75
