Product Overview:

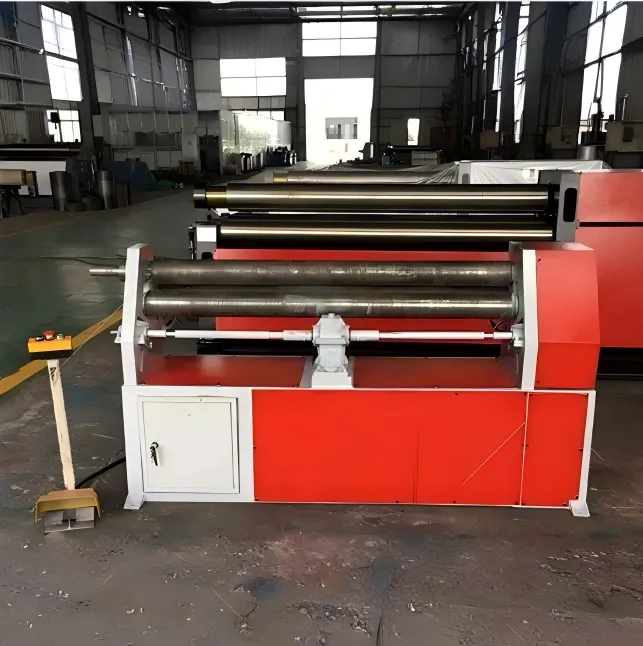

The W11F-3×1000 asymmetrical plate rolling machine features a three-roll asymmetrical design. The upper roll serves as the main drive, while the lower roll moves vertically to clamp the plate; it also engages with the upper roll’s gear to function as the main drive. The side rollers perform tilting and lifting movements, providing both pre-bending and circular rolling functions. The machine features a compact design and is easy to operate and maintain.
Product Description:
The W11F-3×1000 asymmetrical plate rolling machine features a three-roll asymmetrical design. The upper roll serves as the main drive, while the lower roll moves vertically to clamp the plate; it also engages with the upper roll’s gear to function as the main drive. The side rollers perform tilting and lifting movements, providing both pre-bending and circular rolling functions. The machine features a compact design and is easy to operate and maintain.
Technical Specifications:
|
规格型号 |
卷板最厚度mm |
卷板最大度mm |
卷板屈服限Mpa |
满载最小直径mm |
上辊直径mm |
下辊直径mm |
边辊直径mm |
主电机功率kw |
|
W11-2×1000 |
2 |
1000 |
245 |
250 |
120 |
120 |
120 |
2.2 |
|
W11-2×1200 |
2 |
1200 |
245 |
250 |
120 |
120 |
120 |
2.2 |
|
W11-2×1500 |
2 |
1500 |
245 |
250 |
130 |
130 |
130 |
2.2 |
|
W11-2×2000 |
2 |
2000 |
245 |
250 |
130 |
130 |
130 |
2.2 |
|
W11-4×1000 |
4 |
1000 |
245 |
300 |
140 |
140 |
140 |
3 |
|
W11-4×1200 |
4 |
1200 |
245 |
300 |
140 |
140 |
140 |
3 |
|
W11-4×2000 |
4 |
2000 |
245 |
350 |
150 |
150 |
150 |
3 |
|
W11-6×1000 |
6 |
1000 |
245 |
350 |
140 |
140 |
140 |
3 |
|
W11-6×1500 |
6 |
1500 |
245 |
400 |
150 |
150 |
150 |
4 |
|
W11-6×2000 |
6 |
2000 |
245 |
400 |
160 |
160 |
160 |
4 |
