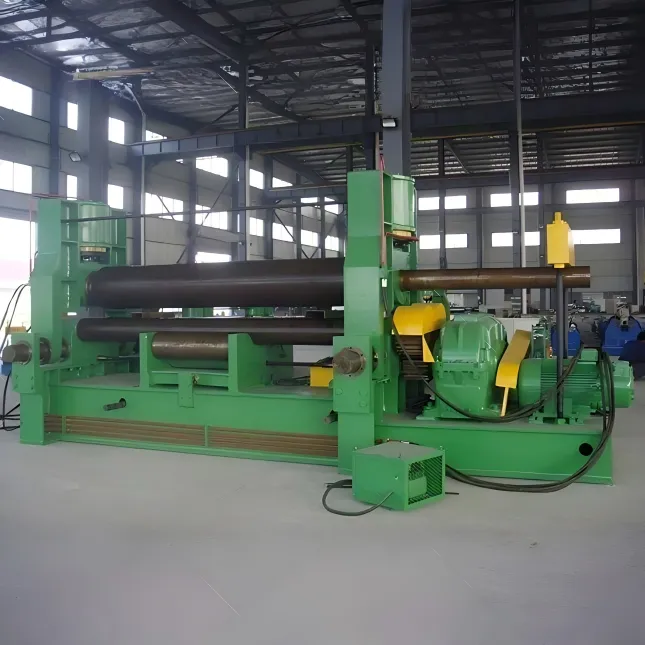

W11S-30X2000 Upper-roll Universal Plate Rolling Machine

Product Description:

The W11S-30X2000 Upper-Roll Universal Plate Rolling Machine is a hydraulic three-roll plate rolling machine designed to perform end pre-bending, rolling, and straightening of carbon steel and low-alloy steel sheets used in various containers at room temperature. It completes these processes in a single pass without the need to reposition the material. The upper roll can move both vertically and horizontally. Pre-bending is achieved by moving the upper roll horizontally to position it asymmetrically relative to the lower roll. Cylindrical rolling is performed by a motor and reducer driving the two lower rolls. Since the elevation of the lower rolls remains constant, this facilitates material feeding and operation. Detailed electrical schematics are provided, and all wiring strictly follows the drawings. The numbers at both ends of each wire are clear and complete; wire terminals are labeled with the same wire numbers as the connections, and corresponding markings are made on the electrical wiring diagrams and schematics. All electrical components used in the equipment are high-quality products from well-known manufacturers. Electrical protection devices (such as current relays and circuit breakers) undergo rigorous testing prior to installation to ensure reliable operation. The equipment operates smoothly, with flexible control, and exhibits no jamming, oil leaks, or abnormal noise. The painted surfaces are smooth and glossy, with uniform paint film thickness and no defects such as runs or missed spray areas. The tilting frame uses a hydraulic tilting mechanism, ensuring rapid operation. The vertical displacement of the upper roller is driven by a hydraulic system, while the horizontal movement uses a mechanical drive system, both of which operate at high speeds. The equipment features high reliability and a low failure rate.
