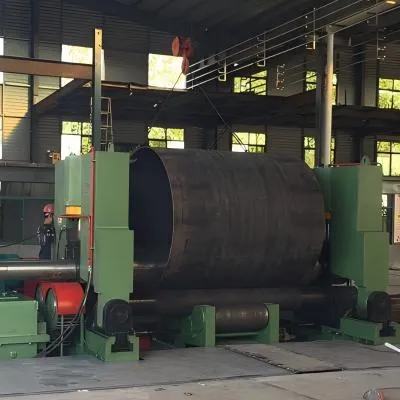

W11S-40X2500 Upper-roll Universal Plate Rolling Machine

Product Description:

This machine is a hydraulic three-roll plate rolling machine designed to perform operations such as end pre-bending, rolling, and rounding of carbon steel and low-alloy steel sheets used for various containers at room temperature. It completes these processes in a single pass without the need to reposition the material. The upper roll can move both vertically and horizontally. Pre-bending is achieved by moving the upper roll horizontally to position it asymmetrically relative to the lower roll. Cylindrical rolling is performed by two lower rolls driven by a motor and reducer. Since the elevation of the lower rolls remains constant, this facilitates material feeding and operation. Detailed electrical schematics are provided, and all wiring strictly follows the drawings. The numbers at both ends of each wire are clear and complete; wire terminals are labeled with the same wire numbers as the connections, and corresponding markings are made on the electrical wiring diagrams and schematics. All electrical components used in the equipment are high-quality products from well-known brands. Electrical protection devices (such as current relays and circuit breakers) undergo rigorous testing prior to installation to ensure reliable operation. The equipment operates smoothly with flexible control, free from jamming, oil leaks, or abnormal noise. The painted surfaces are smooth and glossy, with uniform paint film thickness and no defects such as runs or missed spray areas. The tilting frame uses a hydraulic tilting mechanism for rapid operation. The vertical displacement of the upper roller is driven by a hydraulic system, while the horizontal movement uses a mechanical drive for high speed. The equipment features high reliability and a low failure rate.
